UHPC’s superior performance data and index
1、The high compactness and good working performance of UHPC make the surface that contacts with the template have a high degree of smoothness. The outside harmful medium is difficult to intrude into the UHPC, and the colorants and other components in the UHPC are not easily dissolved out. With this characteristic, UHPC can be used as the exterior decoration material of buildings, and the chromatic aberration is reduced to the minimum, which is more conducive to surface cleaning.
2、UHPC is a ultra-high strength cement-based material with high strength, high toughness and low porosity. Its basic preparation principle is that by increasing the fineness and activity of the component, without the use of coarse aggregate, the defects (pores and micro cracks) within the material are reduced to the least, so as to obtain ultra high strength and high durability.
3、Mechanical properties of UHPC
Property | Heat-treated Ductal® — FM and Ductal® — AF | Unheat-treated Ductal® — FO |
Apparent density | 2500kg/m³ | 2350kg/m³ |
Compressive strength | 150~180MPa | 100~140MPa |
Bending strength(4×4×16cm) | 30~40MPa | 15~20MPa |
Tensile strength | 8MPa | 5MPa |
Residual tensile strength | 8Mpa | 3MPa |
Young’s modulus of elasticity | 50Gpa | 45Gpa |
Poisson ratio | 0.2 | 0.2 |
Shrink | <10µm/m | <10µm/m |
Creep coefficient | 0.3 | 0.8 |
Coefficient of thermal expansion | 11.8µm/m/°C | 11.8µm/m/°C |
4、Resistance to acid attack. UHPCis exhibiting high resistance, even under severe conditions (the general concrete will be destroyed), and it’s resistance ability can make it be exposed to various erosion elements (such as calcium sulfate, sodium sulphate, acetic acid, ammonium sulphate, nitrate, sea water and distilled water).
5、UHPC is an Ultra High Performance Concrete (UHPC) which is developed from fine and high strength aggregate. The aggregate size combination has been optimized, so it is the lowest porosity concrete in the market. Because Ductal UHPC uses a specific combination of materials, it is suitable for the production of narrow and tiny components and these components have high durability (abrasive resistance, carbonation, chloride permeability and freezing-thawing resistance, etc.), which are far higher than the traditional concrete materials, such as at least 1000 times lower oxygen permeability. The hollowing out rate can be made to 50~70%.
6、The excellent performance of the material itself and the premixed pouring process make the product quality more stable and controllable, and it is not easy to crack.
7、Freeze-thaw test (300 cycles) 100% don’t change
•Ice salt denudation<0.0131b/M2, capillary porosity<1%
•HRT cycles 100%
•Abrasion resistance (relative volume loss index)1.7
•Oxygen permeation<10—9M2, total porosity3-6%
•Carbonization depth<0.02in
8、Way to install: both open installation and concealed installation are acceptable.

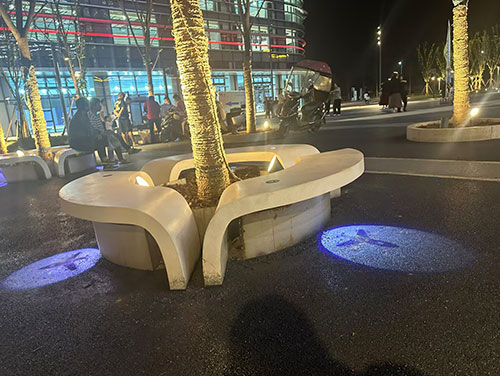

UHPC Urban Plaza Landscape Planter Panels: Durable and Flexible Solutions for Modern Public Spaces
Urban plazas and public spaces require landscape solutions that combine durability, aesthetics, and functionality. UHPC (Ultra-High Performance Concrete) Urban Plaza Landscape Planter Panels provide an innovative approach to integrating greenery into these environments. With their exceptional structural strength, weather resistance, and design flexibility, UHPC panels are ideal for creating modular planter systems in high-traffic urban areas. These panels offer long-term performance, low maintenance, and aesthetic versatility, making them a preferred choice for urban designers, landscape architects, and municipal planners seeking sustainable and resilient solutions for city plazas, pedestrian zones, and commercial outdoor spaces.
Ultra-High Performance Concrete (UHPC) is a specialized concrete formulation characterized by exceptional compressive strength, superior durability, and low permeability. It is composed of fine aggregates, high cement content, silica fume, and chemical admixtures, enabling compressive strengths often exceeding 150 MPa. UHPC’s dense microstructure provides excellent resistance to environmental stressors, including freeze-thaw cycles, chemical corrosion, and abrasion, making it particularly suitable for urban outdoor applications that experience heavy usage and variable weather conditions.
UHPC offers several key advantages for urban plaza planter applications:
High Durability: Resistant to freeze-thaw cycles, UV exposure, rain, and pollutants.
Corrosion Resistance: Protects embedded reinforcement against moisture and chloride penetration.
Lightweight Construction: Enables easier handling, transportation, and installation without compromising strength.
Design Flexibility: Supports a variety of textures, finishes, and forms, including smooth, textured, or stone-like appearances.
Low Maintenance: Minimizes long-term maintenance and repair costs while maintaining visual quality.
Planter panels must support the weight of soil, water, and vegetation without compromising stability. UHPC’s high compressive and flexural strength allows for thinner panels with slim profiles while maintaining structural performance. Panels can be designed as standalone planters, continuous planter walls, or integrated with seating and pedestrian zones, providing multifunctional urban solutions.
Urban planners often require planter panels that complement diverse architectural styles. UHPC panels can be manufactured with smooth, sandblasted, or textured surfaces. Designers can also incorporate integral pigments, faux stone finishes, or patterned textures, enabling seamless integration into contemporary plazas, historic squares, or mixed-use developments. Perforated or sculptural designs are feasible for artistic or functional purposes, such as water drainage or improved air circulation.
Lightweight UHPC panels simplify installation and allow flexible modular configurations. Panels can be arranged in linear formations, corner units, or stacked compositions to accommodate different landscape layouts. Modular construction also enables future reconfiguration, supporting adaptive urban design and long-term site flexibility.
Effective water management is essential for planter panels. UHPC panels can integrate drainage channels, perforated bottoms, or removable liners to maintain plant health and prevent water accumulation. Designers should consider soil depth, plant root systems, and irrigation requirements to optimize plant growth and panel performance.
Urban plazas require resilient materials capable of withstanding heavy foot traffic, environmental exposure, and occasional vandalism. UHPC planter panels provide a durable foundation for greenery while offering flexible design solutions that enhance public spaces. These panels can also double as seating or barriers, maximizing functionality in limited urban areas.
Office complexes, retail centers, educational campuses, and cultural institutions benefit from UHPC panels due to their durability and low maintenance requirements. They can be used to define courtyards, entrance plazas, or pedestrian pathways, integrating greenery seamlessly into functional urban landscapes.
UHPC panels are ideal for high-density residential projects and mixed-use developments where outdoor public spaces require durable, aesthetically pleasing landscaping. Lightweight panels allow for easy installation on terraces, podiums, or rooftops, while modular configurations enable creative layouts tailored to site-specific conditions.
UHPC’s resistance to corrosion, moisture, and temperature fluctuations makes these panels suitable for coastal or industrial urban environments. Planter panels maintain structural integrity and appearance even under extreme conditions, ensuring long-term performance and reduced maintenance in challenging locations.
UHPC planter panels can be installed using mechanical anchors, integrated footings, or modular support systems. Lightweight construction facilitates handling and positioning, reducing labor intensity and installation time. Panels can be preassembled or installed on-site, depending on project requirements, while modular design ensures flexibility and alignment.
Although UHPC panels are low-maintenance, periodic care ensures optimal longevity:
Cleaning: Use neutral pH cleaners and low-pressure water to remove dust, debris, and minor stains. Avoid acidic or abrasive cleaning agents.
Inspection: Regularly check anchors, joints, and drainage components to maintain stability and functionality.
Minor Repairs: Chips or surface damage can be repaired with UHPC-compatible repair compounds without compromising structural integrity.
UHPC Urban Plaza Landscape Planter Panels contribute to sustainable urban design:
Long Lifespan: Reduced replacement frequency conserves materials and minimizes waste.
Recycled Content: Panels can incorporate recycled aggregates or industrial by-products.
Reduced Maintenance: Minimizes cleaning and repair-related environmental impact.
Water Management: Integrated drainage supports efficient irrigation and healthy plant growth, promoting sustainable water use.
City Plaza, Germany: UHPC planter panels provided durable, aesthetically integrated greenery in a high-traffic public square while also serving as seating.
Residential Complex, Canada: Modular UHPC panels created flexible terrace planters with textured finishes, blending functionality and visual appeal.
Coastal Boardwalk, USA: Salt-resistant UHPC panels maintained structural integrity and appearance under harsh marine conditions, demonstrating resilience and longevity.
These cases illustrate the versatility, durability, and design adaptability of UHPC planter panels in diverse urban settings.
UHPC Urban Plaza Landscape Planter Panels offer a durable, versatile, and aesthetically adaptable solution for modern urban landscapes. Combining the strength, weather resistance, and low-maintenance benefits of ultra-high-performance concrete with customizable designs, these panels provide long-term performance and functional beauty. Lightweight, modular construction simplifies installation and supports creative urban design solutions. Ideal for public plazas, pedestrian zones, commercial developments, and harsh environmental settings, UHPC planter panels enhance greenery in urban spaces, delivering sustainable, resilient, and visually appealing outdoor environments.
