UHPC’s superior performance data and index
1、The high compactness and good working performance of UHPC make the surface that contacts with the template have a high degree of smoothness. The outside harmful medium is difficult to intrude into the UHPC, and the colorants and other components in the UHPC are not easily dissolved out. With this characteristic, UHPC can be used as the exterior decoration material of buildings, and the chromatic aberration is reduced to the minimum, which is more conducive to surface cleaning.
2、UHPC is a ultra-high strength cement-based material with high strength, high toughness and low porosity. Its basic preparation principle is that by increasing the fineness and activity of the component, without the use of coarse aggregate, the defects (pores and micro cracks) within the material are reduced to the least, so as to obtain ultra high strength and high durability.
3、Mechanical properties of UHPC
Property | Heat-treated Ductal® — FM and Ductal® — AF | Unheat-treated Ductal® — FO |
Apparent density | 2500kg/m³ | 2350kg/m³ |
Compressive strength | 150~180MPa | 100~140MPa |
Bending strength(4×4×16cm) | 30~40MPa | 15~20MPa |
Tensile strength | 8MPa | 5MPa |
Residual tensile strength | 8Mpa | 3MPa |
Young’s modulus of elasticity | 50Gpa | 45Gpa |
Poisson ratio | 0.2 | 0.2 |
Shrink | <10µm/m | <10µm/m |
Creep coefficient | 0.3 | 0.8 |
Coefficient of thermal expansion | 11.8µm/m/°C | 11.8µm/m/°C |
4、Resistance to acid attack. UHPCis exhibiting high resistance, even under severe conditions (the general concrete will be destroyed), and it’s resistance ability can make it be exposed to various erosion elements (such as calcium sulfate, sodium sulphate, acetic acid, ammonium sulphate, nitrate, sea water and distilled water).
5、UHPC is an Ultra High Performance Concrete (UHPC) which is developed from fine and high strength aggregate. The aggregate size combination has been optimized, so it is the lowest porosity concrete in the market. Because Ductal UHPC uses a specific combination of materials, it is suitable for the production of narrow and tiny components and these components have high durability (abrasive resistance, carbonation, chloride permeability and freezing-thawing resistance, etc.), which are far higher than the traditional concrete materials, such as at least 1000 times lower oxygen permeability. The hollowing out rate can be made to 50~70%.
6、The excellent performance of the material itself and the premixed pouring process make the product quality more stable and controllable, and it is not easy to crack.
7、Freeze-thaw test (300 cycles) 100% don’t change
•Ice salt denudation<0.0131b/M2, capillary porosity<1%
•HRT cycles 100%
•Abrasion resistance (relative volume loss index)1.7
•Oxygen permeation<10—9M2, total porosity3-6%
•Carbonization depth<0.02in
8、Way to install: both open installation and concealed installation are acceptable.

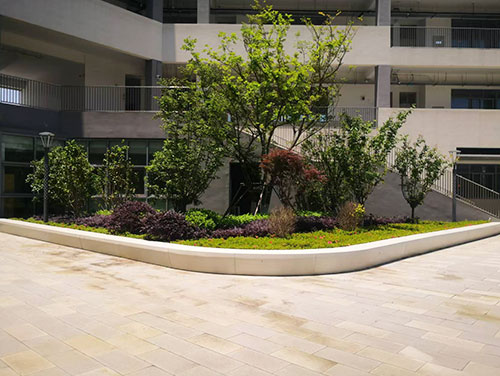

UHPC Outdoor Granite-Effect Flooring: Durable and Aesthetic Solutions for Modern Outdoor Spaces
Outdoor flooring requires materials that combine durability, weather resistance, and aesthetic appeal. Traditional flooring solutions such as natural stone, standard concrete, or asphalt often face challenges like cracking, corrosion, fading, and heavy maintenance. UHPC Outdoor Granite-Effect Flooring leverages ultra-high-performance concrete technology to address these issues, offering exceptional strength, longevity, and design flexibility.
This article explores the material properties, advantages, design versatility, installation considerations, and applications of UHPC granite-effect flooring, highlighting why it is increasingly used in urban landscapes, commercial plazas, residential patios, and public walkways.
Ultra-High Performance Concrete (UHPC) is a composite material engineered for superior durability and strength. Its key components include:
High-grade cement and fine aggregates
Fiber reinforcements for tensile and flexural strength
Chemical admixtures to enhance workability, curing, and performance
UHPC offers compressive strengths often exceeding 120 MPa, very low permeability, excellent abrasion resistance, and high tensile and flexural strength. These properties make it ideal for outdoor flooring in high-traffic and environmentally exposed areas.
Compared with natural stone, standard concrete, or asphalt, UHPC granite-effect flooring offers:
Durability: Resists cracking, wear, and structural degradation
Weather resistance: Withstands freeze-thaw cycles, UV radiation, and moisture penetration
Low maintenance: Requires minimal cleaning and no periodic sealing
Design flexibility: Supports various textures, colors, and finishes, including granite-effect aesthetics
These features make UHPC flooring a long-lasting and cost-effective solution for diverse outdoor environments.
Outdoor surfaces are exposed to rain, sunlight, temperature fluctuations, and pollution. UHPC flooring’s dense microstructure prevents water ingress and surface degradation, ensuring long-term stability and performance. Granite-effect finishes maintain color and texture even under prolonged UV exposure and heavy foot traffic.
Fiber-reinforced UHPC provides exceptional tensile and flexural strength, allowing granite-effect panels to support pedestrian traffic, light vehicles, and landscaping equipment without cracking or deformation. This makes them suitable for commercial plazas, pedestrian walkways, and public parks.
UHPC flooring exhibits superior resistance to abrasion, chemical exposure, and environmental pollutants. The granite-effect surface maintains its appearance and texture, reducing maintenance needs and ensuring safety in public and private spaces.
The granite-effect finish combines natural stone visuals with the structural advantages of UHPC. Designers can choose from:
Smooth, polished surfaces for modern urban designs
Textured or sandblasted finishes for slip resistance and natural stone appearance
Pigmented or patterned surfaces to match architectural and landscape aesthetics
UHPC granite-effect panels can be precast in various sizes and shapes, offering flexibility for layout and design. Options include:
Square, rectangular, or custom-shaped tiles
Interlocking modular units for easy installation
Panels compatible with existing drainage and substructure systems
UHPC outdoor flooring can be integrated with additional landscape elements:
Embedded lighting for pathways and plazas
Drainage channels to prevent water accumulation
Raised edges or seating edges for multifunctional design
This versatility ensures both functional and aesthetic integration into public and private outdoor spaces.
High-traffic urban areas require durable, low-maintenance flooring that withstands heavy pedestrian use and environmental exposure. UHPC granite-effect flooring delivers long-term performance while enhancing visual appeal, complementing architectural elements in commercial and civic spaces.
Homeowners seeking premium outdoor surfaces can benefit from UHPC granite-effect flooring. Its combination of natural stone aesthetics and UHPC durability provides an elegant, low-maintenance surface for patios, terraces, and walkways.
Parks, playgrounds, and recreational areas require flooring that is both safe and durable. UHPC panels resist wear, maintain slip resistance, and withstand exposure to weather and foot traffic, ensuring a safe and attractive outdoor environment.
Universities, hotels, shopping centers, and corporate campuses can use UHPC flooring for courtyards, walkways, and outdoor dining areas. Its customizable finishes, load-bearing capacity, and low maintenance make it ideal for high-traffic institutional and commercial applications.
Proper site preparation is essential for long-term performance:
Ensure a level and compacted subbase
Incorporate drainage systems to prevent water pooling
Plan panel layout for accessibility and traffic patterns
Precast UHPC granite-effect panels are lightweight yet robust, simplifying transportation and installation. Installation options include surface mounting, interlocking modular systems, or embedding in mortar beds. Panels can be installed individually or as part of a continuous layout.
Panels can be designed with slip-resistant surfaces and rounded edges. UHPC outdoor flooring complies with safety and accessibility standards, making it suitable for public and residential applications.
UHPC panels last decades with minimal maintenance, reducing the need for replacement and conserving natural resources. Thin but strong panels optimize material usage without compromising structural integrity.
Lightweight panels reduce transportation energy and emissions
Minimal cleaning requirements reduce water and chemical use
Durable design minimizes waste associated with frequent replacement
UHPC granite-effect flooring supports sustainable building certifications such as LEED, BREEAM, and WELL by providing long-lasting, resilient, and environmentally responsible outdoor surfaces.
The upfront cost of UHPC granite-effect panels may be higher than natural stone or traditional concrete, but the investment is offset by durability, low maintenance, and long service life.
The combination of strength, weather resistance, low maintenance, and aesthetic appeal ensures cost savings over the lifecycle of the flooring, making UHPC granite-effect panels a practical choice for municipalities, commercial developers, and homeowners.
UHPC Outdoor Granite-Effect Flooring offers:
Superior resistance to weather, abrasion, and corrosion
Long-term durability and minimal maintenance requirements
Aesthetic versatility with natural stone appearance
Lightweight yet high-strength construction
Modular and customizable designs for diverse layouts
Compatibility with sustainable and green building initiatives
These advantages make UHPC granite-effect flooring a reliable solution for contemporary outdoor environments in Europe, North America, and beyond.
UHPC Outdoor Granite-Effect Flooring provides a modern, durable, and visually appealing solution for outdoor surfaces. By combining ultra-high-performance concrete technology with the aesthetics of natural stone, UHPC panels offer exceptional weather resistance, structural strength, and low maintenance, making them suitable for urban plazas, residential gardens, commercial spaces, and public parks.
With customizable designs, modular installation options, and sustainable attributes, UHPC granite-effect flooring enhances both the functionality and aesthetic appeal of outdoor spaces. Investing in UHPC outdoor flooring ensures long-term performance, safety, and cost-effectiveness while supporting environmentally responsible landscape design.
